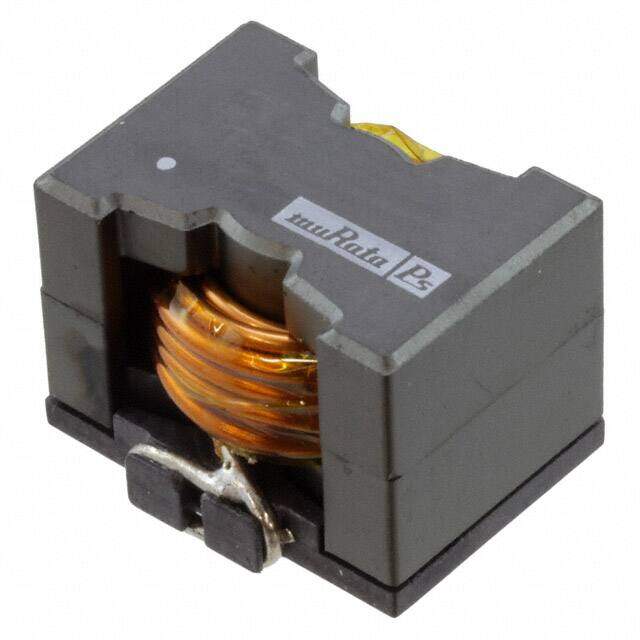

60B684C image
Favorite
60B684C image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description 6000B Nonstandard 1.063Lx0.768W 27.00mmx19.50mm 680muH
PDF
/
Buying Options
Total Price: USD $1.94
Unit Price: USD $1.936
≥1 USD $1.936
Inventory: 1126
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~85°C
Packaging Tray
Series 6000B
Size / Dimension 1.063Lx0.768W 27.00mmx19.50mm
Tolerance ±15%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Pure Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 23.5mm
Current Rating 3A
Military Standard Not
Inductance 680μH
Test Frequency 100kHz
DC Resistance (DCR) 135mOhm Max
Max DC Current 3A
Frequency - Self Resonant 1.59MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Tolerance 15%
DC Current 3A
RMS Current (Irms) 3A

Dimensions

Height 20mm
Height Seated (Max) 0.787 20.00mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
