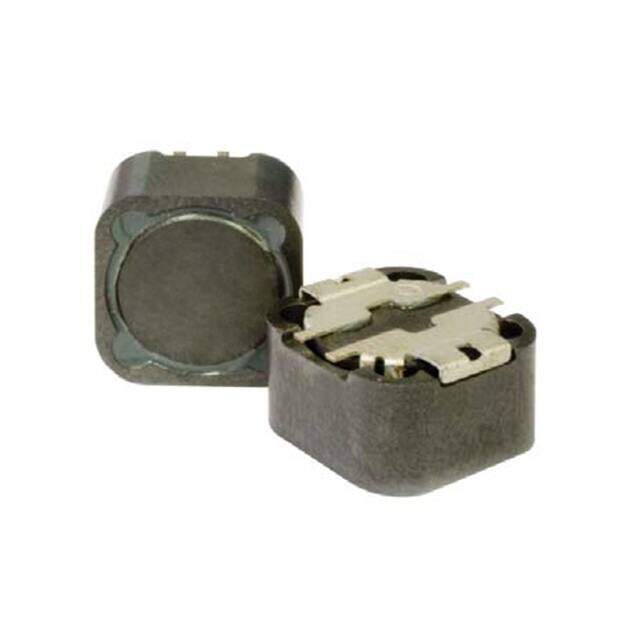

49221SC image
Favorite
49221SC image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard, 4 Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description 4900S Nonstandard 4Lead 0.480Lx0.480W 12.20mmx12.20mm 220muH
PDF
/
Inventory: 6951
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.315 8.00mm
Height 8mm

Technical

Q @ Freq 36 @ 800kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 4MHz
Max DC Current 1.1A
DC Resistance (DCR) 380mOhm Max
Test Frequency 10kHz
Inductance 220μH
Current Rating 1.1A
Depth 12.5mm
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.480Lx0.480W 12.20mmx12.20mm
Series 4900S
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape ONE SURFACE
Package / Case Nonstandard, 4 Lead
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
