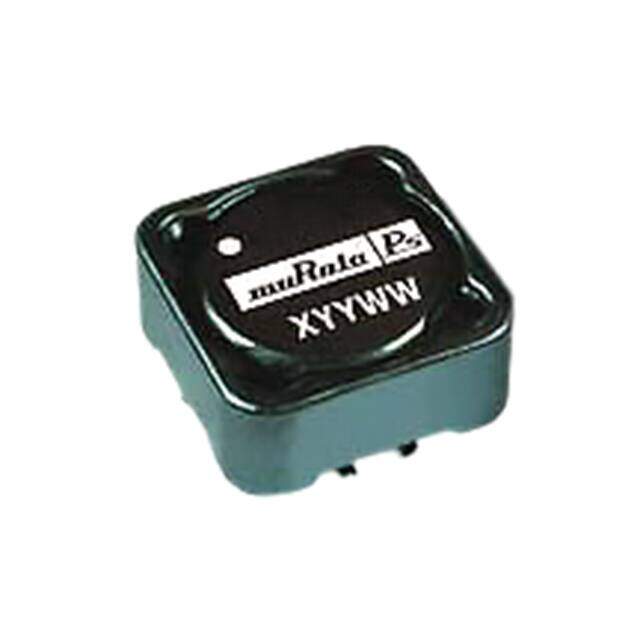

483R3C
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard, 4 Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
4800 Nonstandard 4Lead 0.480Lx0.480W 12.20mmx12.20mm 3.3muH
PDF
/
Inventory: 946
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.244 6.20mm
Height 6.2mm
Technical
Inductance - Series 3.82 μH
Inductance - Parallel 3.3 μH
Special Feature PARALLEL CONNECTED
Terminal Placement DUAL IN-LINE
Max DC Current 6.8A
DC Resistance (DCR) 19.1mOhm Max
Test Frequency 10kHz
Inductance 3.3μH
Current Rating 6.8A
Depth 12.5mm
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.480Lx0.480W 12.20mmx12.20mm
Series 4800
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape ONE SURFACE
Package / Case Nonstandard, 4 Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks

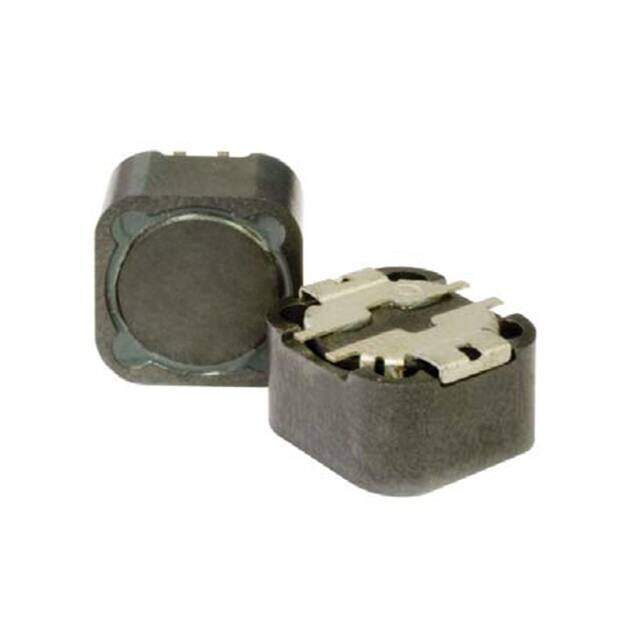

Alternative Model
