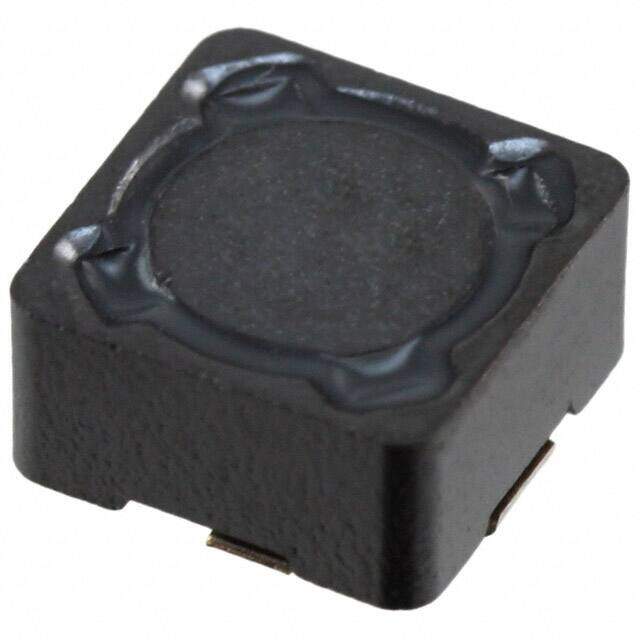

46541C image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description 4600 Nonstandard 0.287Lx0.287W 7.30mmx7.30mm 540nH
PDF
/
Buying Options
Total Price: USD $0.87
Unit Price: USD $0.872121
≥1 USD $0.872121
≥10 USD $0.822761
≥100 USD $0.776191
≥500 USD $0.732253
≥1000 USD $0.690802
Inventory: 8749
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series 4600
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Tolerance ±30%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 7.5mm
Current Rating 7.7A
Military Standard Not
Inductance 540nH
Test Frequency 10kHz
DC Resistance (DCR) 10mOhm Max
Max DC Current 7.7A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 2929
DC Current 7.7A

Dimensions

Height 4.55mm
Height Seated (Max) 0.179 4.55mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
