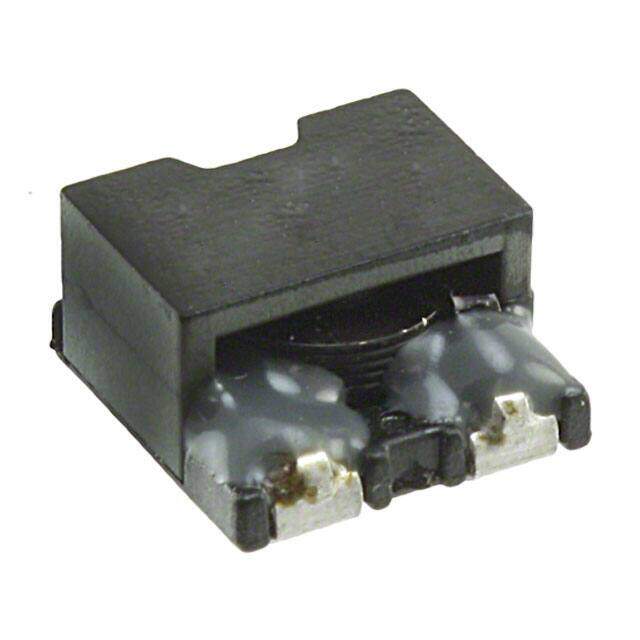

38H151C image
Favorite
38H151C image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description 3800 Nonstandard 0.409Lx0.409W 10.40mmx10.40mm 150nH
PDF
/
Inventory: 6137
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Height Seated (Max) 0.220 5.60mm
Height 5.6mm

Technical

RMS Current (Irms) 18A
Inductance Tolerance 30%
Case/Size Code 4141
Current - Saturation 38A
Terminal Placement DUAL IN-LINE
Inductor Application POWER INDUCTOR
Max DC Current 18A
DC Resistance (DCR) 1.9mOhm Max
Test Frequency 100kHz
Inductance 150nH
Current Rating 18A
Depth 10.4mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Tolerance ±30%
Size / Dimension 0.409Lx0.409W 10.40mmx10.40mm
Series 3800
Packaging Cut Tape (CT)
Operating Temperature -40°C~130°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
