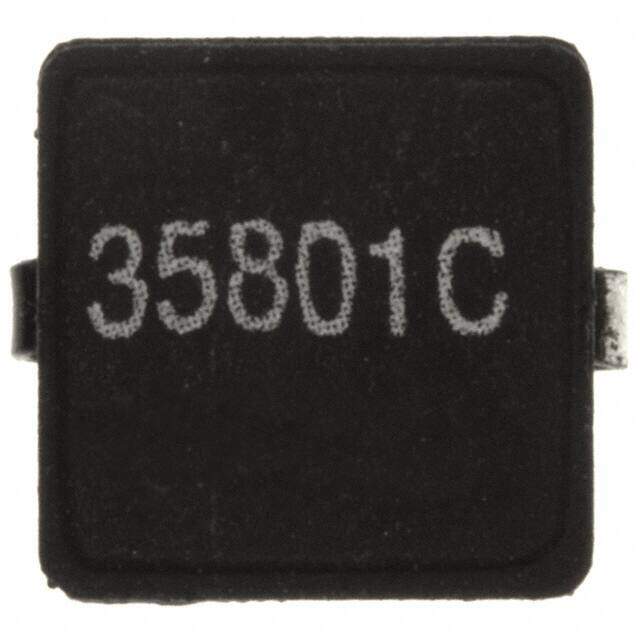

35801C
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
3500 Nonstandard 0.268Lx0.268W 6.80mmx6.80mm 800nH
PDF
/
Inventory: 5106
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.126 3.20mm
Height 3.2mm
Technical
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 9.5A
DC Resistance (DCR) 10mOhm Max
Inductance 800nH
Current Rating 9.5A
Depth 7.6mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Tolerance ±25%
Size / Dimension 0.268Lx0.268W 6.80mmx6.80mm
Series 3500
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
