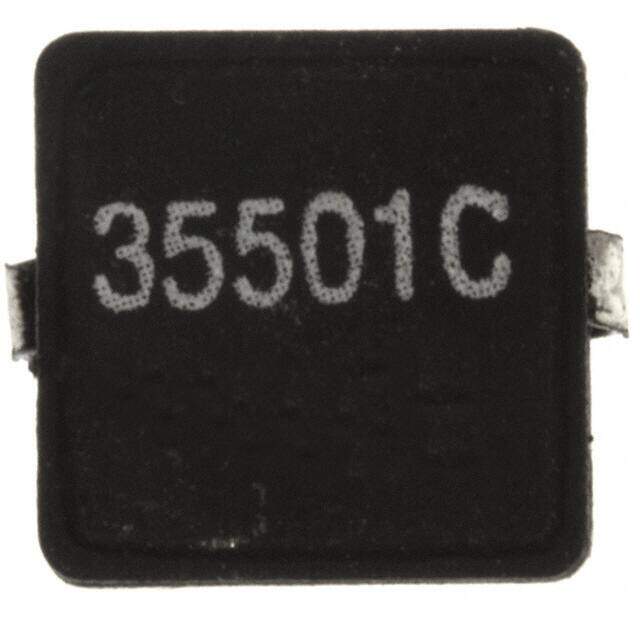

35501C image
Favorite
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description 3500 Nonstandard 0.268Lx0.268W 6.80mmx6.80mm 500nH
PDF
/
Inventory: 7626
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.126 3.20mm
Height 3.2mm

Technical

Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 11.5A
DC Resistance (DCR) 7mOhm Max
Inductance 500nH
Current Rating 11.5A
Depth 7.6mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Tolerance ±25%
Size / Dimension 0.268Lx0.268W 6.80mmx6.80mm
Series 3500
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
