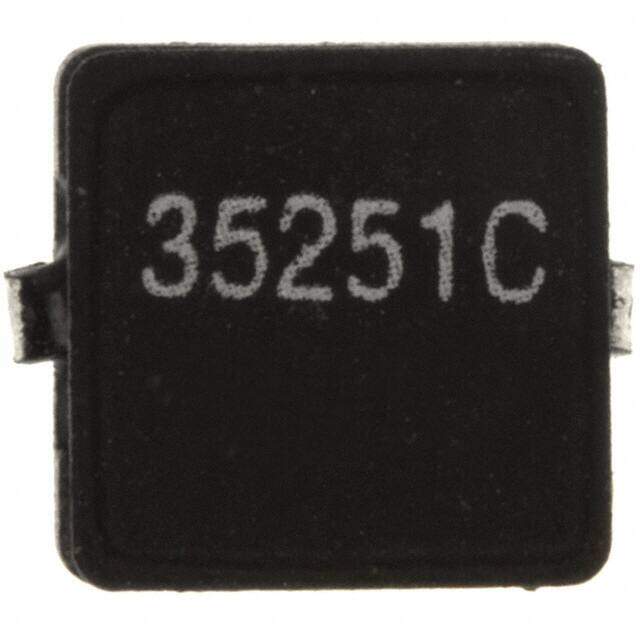

35251C
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
3500 Nonstandard 0.268Lx0.268W 6.80mmx6.80mm 250nH
PDF
/
Inventory: 1200
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series 3500
Size / Dimension 0.268Lx0.268W 6.80mmx6.80mm
Tolerance ±25%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 7.6mm
Current Rating 15.5A
Inductance 250nH
DC Resistance (DCR) 4.5mOhm Max
Max DC Current 15.5A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Dimensions
Height 3.2mm
Height Seated (Max) 0.126 3.20mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
