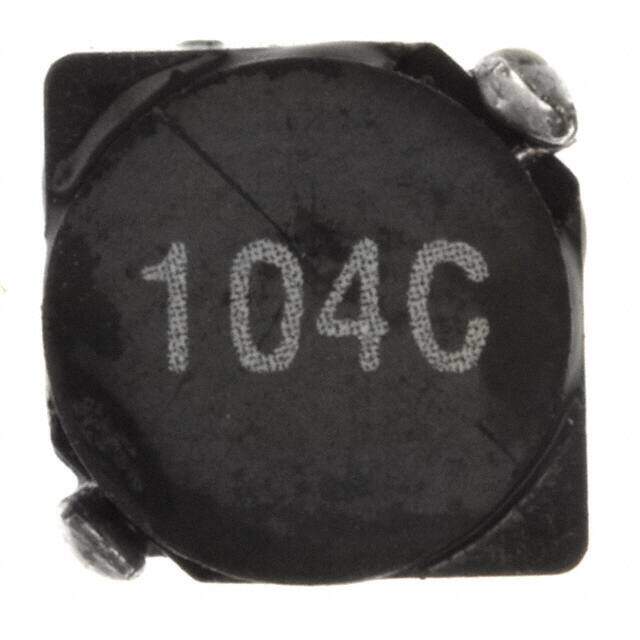

29104C
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
2900 Nonstandard 0.283Lx0.283W 7.20mmx7.20mm 100muH
PDF
/
Buying Options
Total Price: USD $0.42
Unit Price: USD $0.4224
≥1 USD $0.4224
Inventory: 1142
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series 2900
Size / Dimension 0.283Lx0.283W 7.20mmx7.20mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Bright Tin (Sn)
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Depth 7.2mm
Current Rating 530mA
Inductance 100μH
Test Frequency 10kHz
DC Resistance (DCR) 360mOhm Max
Max DC Current 530mA
Inductor Application FILTER CHOKE
Terminal Placement DUAL ENDED
Dimensions
Height 4mm
Height Seated (Max) 0.157 4.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
