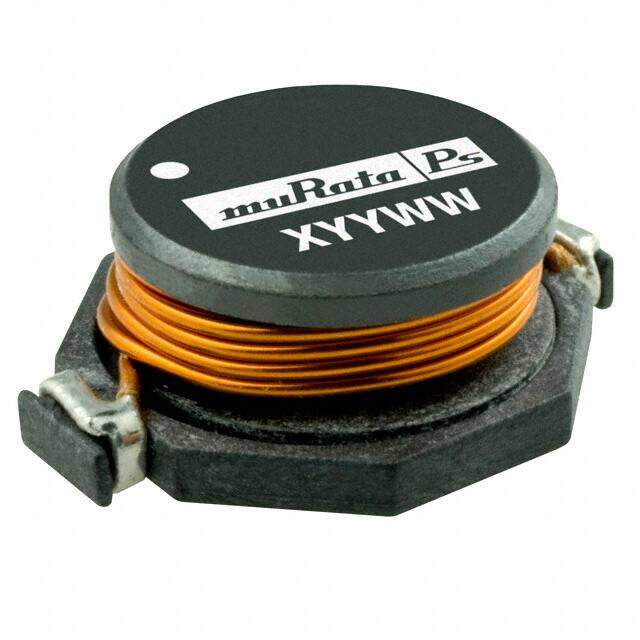

28224C
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
2800 Nonstandard 0.728Lx0.598W 18.50mmx15.20mm 220muH
PDF
/
Inventory: 3933
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.299 7.60mm
Height 7.6mm
Technical
Q Factor 18
Q @ Freq 18 @ 800kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 5.8MHz
Max DC Current 1.2A
DC Resistance (DCR) 381mOhm Max
Test Frequency 10kHz
Inductance 220μH
Current Rating 1.2A
Depth 15.2mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.728Lx0.598W 18.50mmx15.20mm
Series 2800
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
