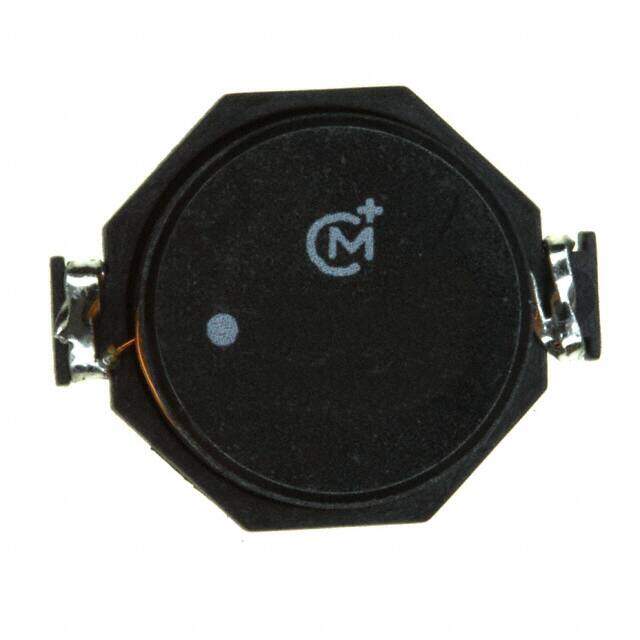

28105C
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
2800 Nonstandard 0.728Lx0.598W 18.50mmx15.20mm 1mH
PDF
/
Inventory: 1846
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series 2800
Size / Dimension 0.728Lx0.598W 18.50mmx15.20mm
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 15.2mm
Current Rating 510mA
Inductance 1mH
Test Frequency 800kHz
DC Resistance (DCR) 1.82Ohm Max
Max DC Current 510mA
Frequency - Self Resonant 3.8MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 21 @ 800kHz
Q Factor 21
Dimensions
Height 7.6mm
Height Seated (Max) 0.299 7.60mm
Compliance
RoHS Status RoHS Compliant
