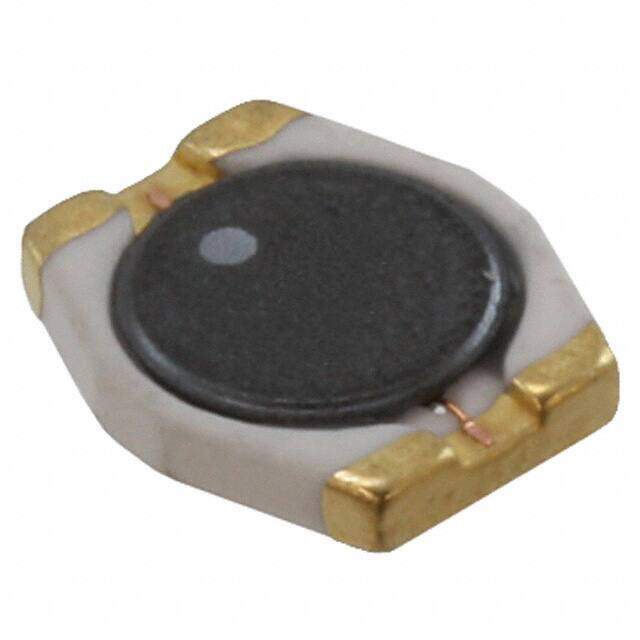

27103C
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
2700 Nonstandard 0.354Lx0.303W 9.00mmx7.70mm 10muH
PDF
/
Buying Options
Total Price: USD $2.52
Unit Price: USD $2.52495
≥1 USD $2.52495
≥10 USD $2.38203
≥100 USD $2.2472
≥500 USD $2.12
≥1000 USD $2
≥3000 USD $1.88679
Inventory: 9250
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series 2700
Size / Dimension 0.354Lx0.303W 9.00mmx7.70mm
Tolerance ±20%
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 7.9mm
Current Rating 1.1A
Inductance 10μH
DC Resistance (DCR) 150mOhm Max
Max DC Current 1.1A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 3530
Inductance Tolerance 20%
RMS Current (Irms) 1.1A
Dimensions
Height 1.65mm
Height Seated (Max) 0.065 1.65mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
