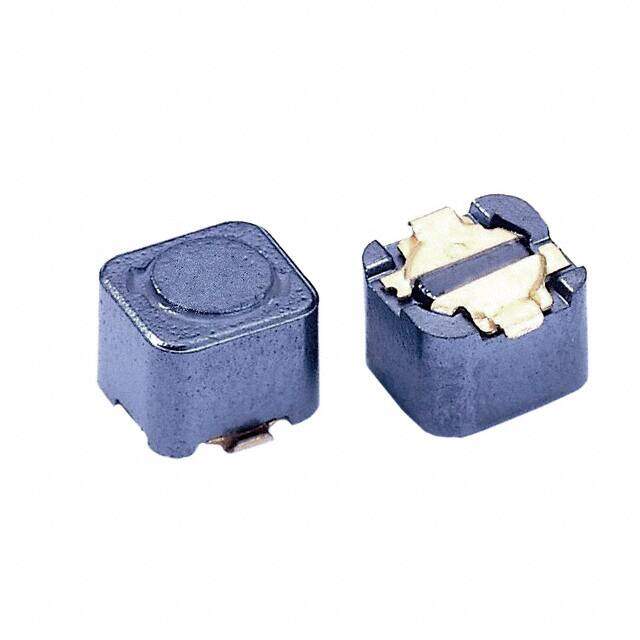

26S330C image
Favorite
26S330C image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description 2600 Nonstandard 0.496Lx0.181W 12.60mmx4.60mm 33muH
PDF
/
Inventory: 5569
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.232 5.90mm
Height 5.4mm

Technical

DC Current 1.8A
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 11.5MHz
Max DC Current 1.8A
DC Resistance (DCR) 100mOhm Max
Test Frequency 1kHz
Inductance 33μH
Military Standard Not
Current Rating 1.8A
Depth 11.6mm
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.496Lx0.181W 12.60mmx4.60mm
Series 2600
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 11 Weeks
