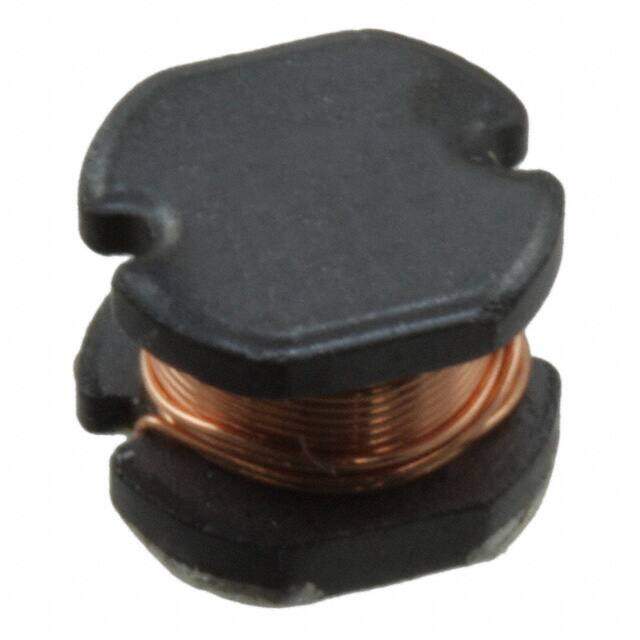

246R8C
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
2400 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 6.8muH
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.61641
≥1 USD $0.61641
≥10 USD $0.581518
≥100 USD $0.548611
≥500 USD $0.517553
≥1000 USD $0.48826
Inventory: 1101
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Cut Tape (CT)
Series 2400
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 5.5mm
Current Rating 1.75A
Inductance 6.8μH
Test Frequency 1kHz
DC Resistance (DCR) 61mOhm Max
Max DC Current 1.75A
Frequency - Self Resonant 37MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
RMS Current (Irms) 1.75A
Saturation Current 1.75A
Dimensions
Height 4.5mm
Height Seated (Max) 0.177 4.50mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
