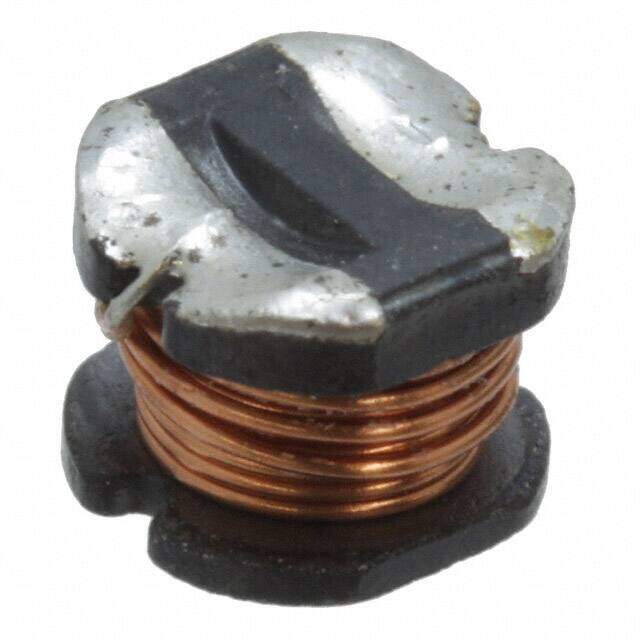

24180C image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description 2400 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 18muH
PDF
/
Inventory: 4932
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~85°C
Packaging Cut Tape (CT)
Series 2400
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 5.5mm
Current Rating 1.26A
Inductance 18μH
Test Frequency 1kHz
DC Resistance (DCR) 150mOhm Max
Max DC Current 1.26A
Frequency - Self Resonant 20MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED

Dimensions

Height 4.5mm
Height Seated (Max) 0.177 4.50mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
