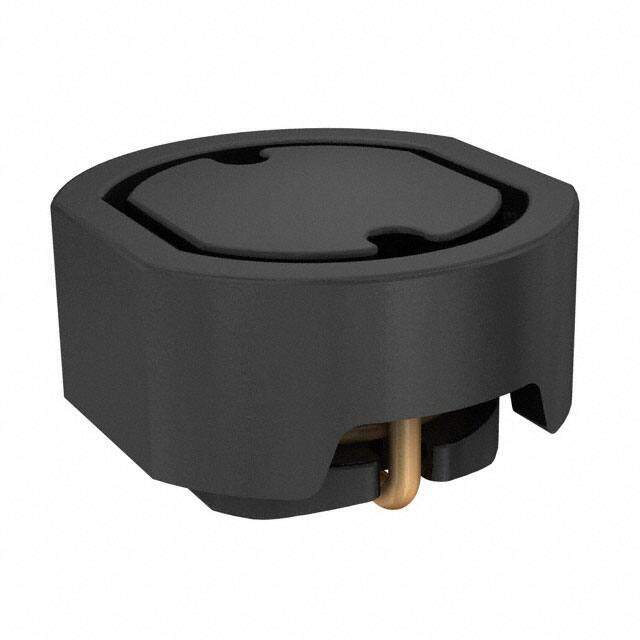

23S470C image
Favorite
23S470C image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description 2300 Nonstandard 0.244Lx0.220W 6.20mmx5.60mm 47muH
PDF
/
Buying Options
Total Price: USD $0.63
Unit Price: USD $0.63124
≥1 USD $0.63124
≥10 USD $0.59551
≥100 USD $0.5618
≥500 USD $0.53
≥1000 USD $0.5
≥3000 USD $0.4717
Inventory: 6250
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Height Seated (Max) 0.126 3.20mm
Height 3.2mm

Technical

RMS Current (Irms) 540mA
DC Current 540mA
Terminal Placement DUAL ENDED
Max DC Current 540mA
DC Resistance (DCR) 460mOhm Max
Test Frequency 1kHz
Inductance 47μH
Military Standard Not
Current Rating 540mA
Depth 5.6mm
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.244Lx0.220W 6.20mmx5.60mm
Series 2300
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
