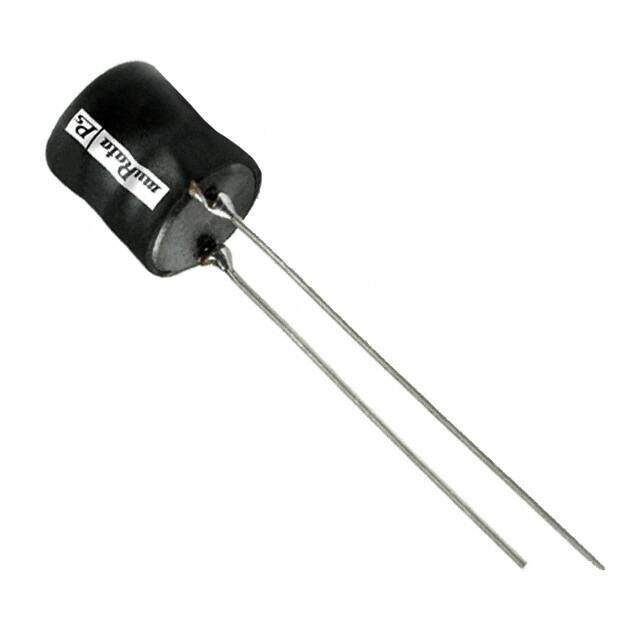

18R682C
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
1800R Radial Vertical Cylinder 0.539Dia 13.70mm 6.8muH
PDF
/
Inventory: 3621
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature 0°C~70°C
Packaging Bulk
Series 1800R
Size / Dimension 0.539Dia 13.70mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Type Wirewound
Terminal Finish Bright Tin (Sn)
HTS Code 8504.50.80.00
Shielding Unshielded
Number of Functions 1
Current Rating 4.15A
Lead Pitch 7.2mm
Lead Diameter 1.2 mm
Inductance 6.8μH
Test Frequency 1kHz
DC Resistance (DCR) 12mOhm Max
Max DC Current 4.15A
Frequency - Self Resonant 26.3MHz
Inductor Application RF INDUCTOR
Q @ Freq 73 @ 500kHz
Quality Factor-Min (at L-nom) 73
Inductance Frequency - Test 1kHz
Q Factor 73
Special Feature Q MEASURED AT 500 KHZ
Dimensions
Diameter 13.7mm
Height 13mm
Height Seated (Max) 0.626 15.90mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
