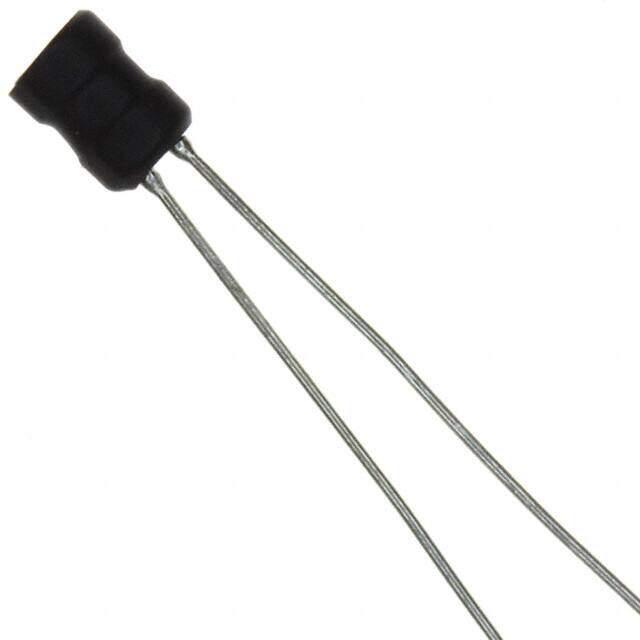

11R153C image
Favorite
11R153C image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description 1100R Radial Vertical Cylinder 0.197Dia 5.00mm 15muH
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.2552
≥1 USD $0.2552
≥10 USD $0.2464
≥100 USD $0.2376
≥500 USD $0.2288
≥1000 USD $0.2112
≥3000 USD $0.2024
Inventory: 200
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Height Seated (Max) 0.295 7.50mm
Height 7.5mm
Diameter 5mm

Technical

Saturation Current 800mA
RMS Current (Irms) 800mA
Inductance Tolerance 10%
Lead/Base Style Radial
Inductor Application POWER INDUCTOR
Max DC Current 800mA
DC Resistance (DCR) 190mOhm Max
Test Frequency 1kHz
Inductance 15μH
Lead Pitch 2mm
Current Rating 800mA
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.197Dia 5.00mm
Series 1100R
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Shape/Size Description CYLINDRICAL PACKAGE
Number of Pins 2
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 10 Weeks
