11R152C
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description

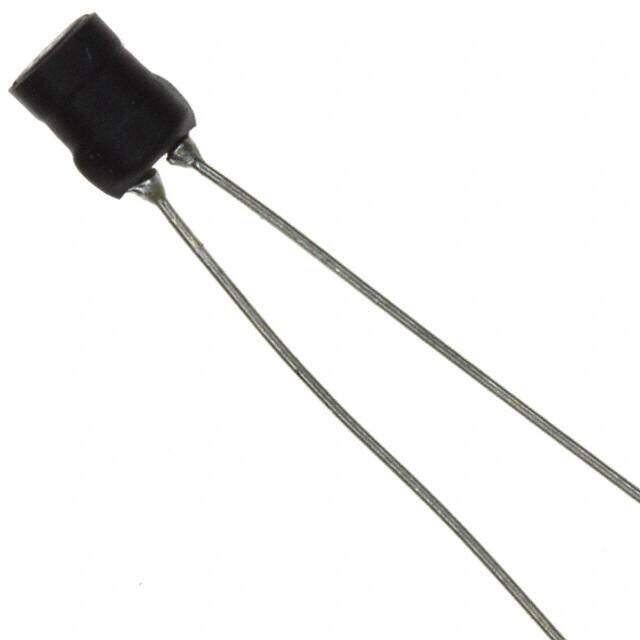

1100R Radial Vertical Cylinder 0.197Dia 5.00mm 1.5muH
PDF
/
Inventory: 8376
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Number of Pins 2
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series 1100R
Size / Dimension 0.197Dia 5.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Current Rating 2.4A
Lead Pitch 2mm
Inductance 1.5μH
Test Frequency 1kHz
DC Resistance (DCR) 30mOhm Max
Max DC Current 2.4A
Inductor Application POWER INDUCTOR
Lead/Base Style Radial
Inductance Tolerance 20%
RMS Current (Irms) 2.4A
Saturation Current 2.4A
Dimensions
Diameter 5mm
Height 7.5mm
Height Seated (Max) 0.295 7.50mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
