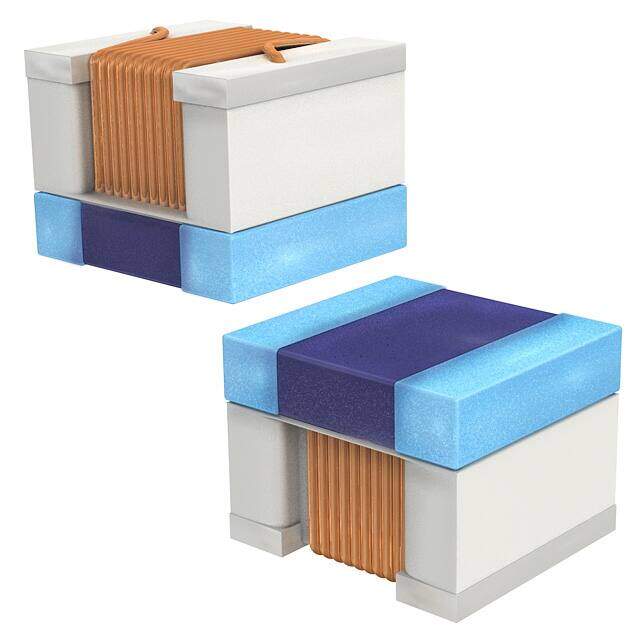

LQW2UAS22NJ00L
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LQW2 1008 (2520Metric) 0.103Lx0.096W 2.62mmx2.45mm 22nH
PDF
/
Buying Options
Total Price: USD $0.19
Unit Price: USD $0.1936
≥1 USD $0.1936
≥10 USD $0.15928
≥100 USD $0.146784
≥500 USD $0.134464
≥1000 USD $0.118536
≥3000 USD $0.114893
Inventory: 1143
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.080 2.03mm
Height 1.83mm
Technical
Inductance Tolerance 5%
Case/Size Code 1010
Q Factor 55
Quality Factor-Min (at L-nom) 55
Q @ Freq 55 @ 350MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 2.4GHz
Max DC Current 1A
DC Resistance (DCR) 120mOhm Max
Test Frequency 50MHz
Inductance 22nH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Current Rating 1A
Construction Chip
Depth 2.65mm
Number of Functions 1
Shielding NO
Packing Method TR, Embossed, 7 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.103Lx0.096W 2.62mmx2.45mm
Series LQW2
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Air
Weight 39.008944mg
Terminal Shape ONE SURFACE
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount
