LQW18AN47NG8ZD
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LQW18 0603 (1608Metric) 0.063Lx0.031W 1.60mmx0.80mm 47nH
PDF
/
Buying Options
Total Price: USD $0.22
Unit Price: USD $0.22
≥1 USD $0.22
≥10 USD $0.17688
≥100 USD $0.163328
≥500 USD $0.1496
≥1000 USD $0.131912
≥3000 USD $0.127811
Inventory: 1134
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.039 1.00mm
Technical
Special Feature Q MEASURED AT 200 MHZ
Rated Current-Max 0.83A
Inductance Frequency - Test 100MHz
Quality Factor-Min (at L-nom) 32
Q @ Freq 32 @ 200MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 2.7GHz
DC Resistance (DCR) 230mOhm Max
Test Frequency 100MHz
Inductance 47nH
Number of Functions 1
Shielding NO
Packing Method TR, Paper, 7 Inch
Current Rating (Amps) 830mA
HTS Code 8504.50.80.00
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±2%
Size / Dimension 0.063Lx0.031W 1.60mmx0.80mm
Series LQW18
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Non-Magnetic
Terminal Shape ONE SURFACE
Surface Mount YES
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 7 Weeks

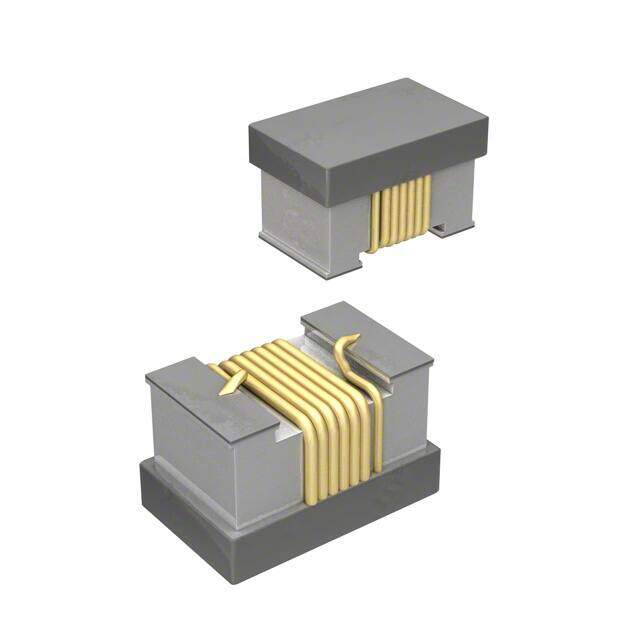

Alternative Model
