LQW04AN10NJ00D
RoHS
RoHS compliant
RoHS compliantPackage 0302 (0804 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

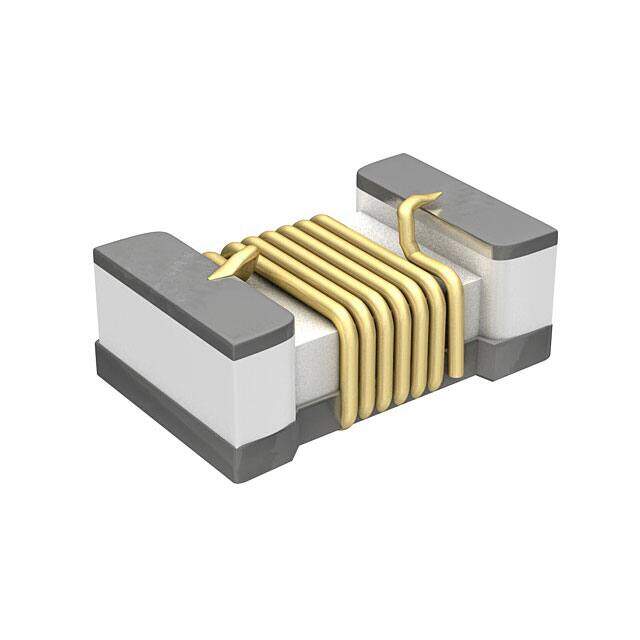

LQW04 0302 (0804Metric) 0.031Lx0.016W 0.80mmx0.40mm 10nH
PDF
/
Buying Options
Total Price: USD $0.16
Unit Price: USD $0.1615
≥1 USD $0.1615
≥10 USD $0.133
≥100 USD $0.12825
≥500 USD $0.12445
≥1000 USD $0.12065
Inventory: 1165
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.018 0.45mm
Height 400μm
Technical
DC Current 330mA
Case/Size Code 0301
Q Factor 20
Quality Factor-Min (at L-nom) 20
Q @ Freq 20 @ 250MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 7GHz
Max DC Current 330mA
DC Resistance (DCR) 260mOhm Max
Test Frequency 100MHz
Inductance 10nH
Case Code (Imperial) 3015
Case Code (Metric) 0804
Military Standard Not
Current Rating 330mA
Depth 450μm
Number of Functions 1
Shielding NO
Packing Method TR, Paper, 7 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Resistance 252mOhm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.031Lx0.016W 0.80mmx0.40mm
Series LQW04
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Core Material Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Weight 311.844754μg
Number of Pins 2
Terminal Shape ONE SURFACE
Package / Case 0302 (0804 Metric)
Mounting Type Surface Mount
Mount Surface Mount
