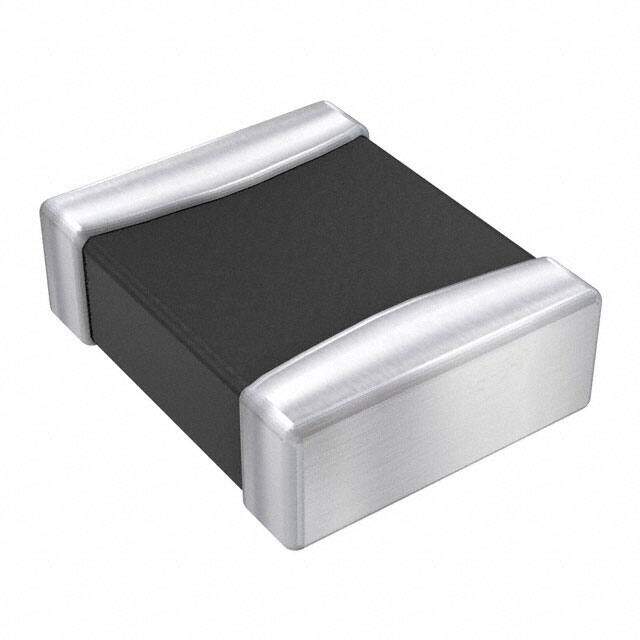

LQM2HPNR24MEHL
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LQM2 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 240nH
PDF
/
Inventory: 5828
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.031 0.80mm
Technical
Rated Current-Max 3A
Current - Saturation 4.5A
Inductance Frequency - Test 1MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 130MHz
DC Resistance (DCR) 34mOhm Max
Test Frequency 1MHz
Inductance 240nH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Current Rating 3A
Number of Functions 1
Shielding YES
Type Multilayer
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series LQM2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 2 weeks ago)
Factory Lead Time 7 Weeks
