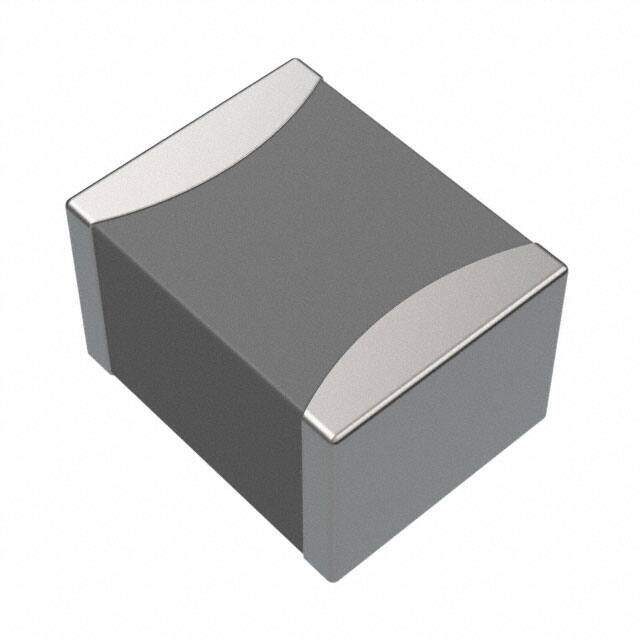

DFE322520FD-4R7M=P2

Murata Electronics
RoHS
RoHS RoHS compliant
Package 1210 (3225 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description DFE322520FD 1210 (3225Metric) 0.126Lx0.098W 3.20mmx2.50mm 4.7muH
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.7568
≥1 USD $0.7568
≥10 USD $0.638
≥100 USD $0.580096
≥500 USD $0.545248
≥1000 USD $0.452496
≥3000 USD $0.417683
Inventory: 5702
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Metal
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series DFE322520FD
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type Wirewound
Current Rating (Amps) 2A
Shielding Shielded
Number of Functions 1
Inductance 4.7μH
Test Frequency 1MHz
DC Resistance (DCR) 98mOhm Max
Terminal Placement DUAL ENDED
Inductance Frequency - Test 1MHz
Current - Saturation 3.4A
Rated Current-Max 2A

Dimensions

Height Seated (Max) 0.079 2.00mm

Compliance

RoHS Status ROHS3 Compliant
Ratings AEC-Q200
