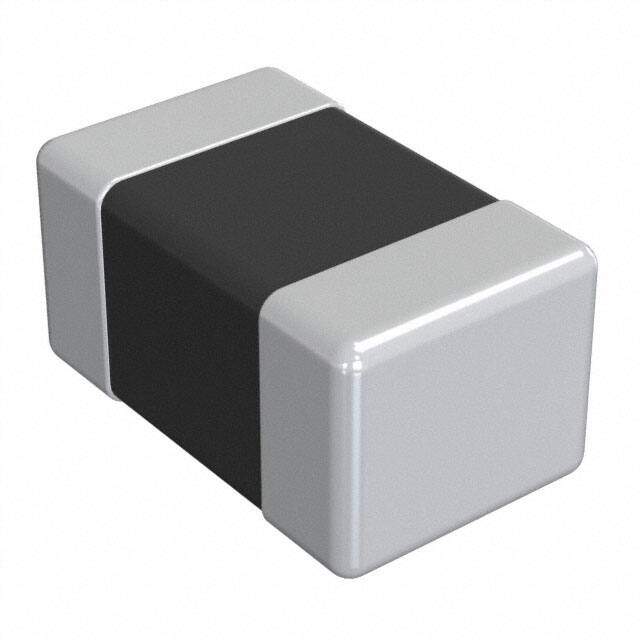

DFE201210U-R33M=P2
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DFE201210U 0805 (2012Metric) 0.079Lx0.047W 2.00mmx1.20mm 330nH
PDF
/
Buying Options
Total Price: USD $0.14
Unit Price: USD $0.136257
≥1 USD $0.136257
≥10 USD $0.112056
≥100 USD $0.101682
≥500 USD $0.088745
Inventory: 1113
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 3 weeks ago)
Physical
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Metal
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series DFE201210U
Size / Dimension 0.079Lx0.047W 2.00mmx1.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 3.4A
Shielding Shielded
Number of Functions 1
Inductance 330nH
Test Frequency 1MHz
DC Resistance (DCR) 31mOhm Max
Terminal Placement DUAL ENDED
Inductance Frequency - Test 1MHz
Current - Saturation 5.2A
Rated Current-Max 3.4A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.039 1.00mm
Compliance
RoHS Status ROHS3 Compliant
