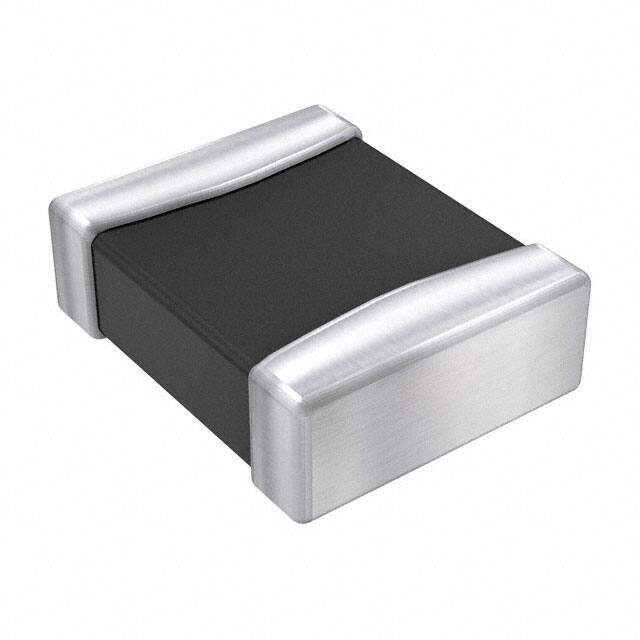

1276AS-H-1R5M=P2
RoHS
RoHS compliant
RoHS compliantPackage 1210 (3225 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DFE322510C 1210 (3225Metric) 0.126Lx0.098W 3.20mmx2.50mm 1.5muH
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.3432
≥1 USD $0.3432
≥10 USD $0.27984
≥100 USD $0.25872
≥500 USD $0.237072
≥1000 USD $0.209
≥3000 USD $0.202576
Inventory: 1115
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Physical
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Iron Powder
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series DFE322510C
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 2.1A
Shielding YES
Number of Functions 1
Inductance 1.5μH
Test Frequency 1MHz
DC Resistance (DCR) 87mOhm Max
Terminal Placement DUAL ENDED
Inductance Frequency - Test 1MHz
Current - Saturation 2.6A
Rated Current-Max 2.1A
Dimensions
Height Seated (Max) 0.039 1.00mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
