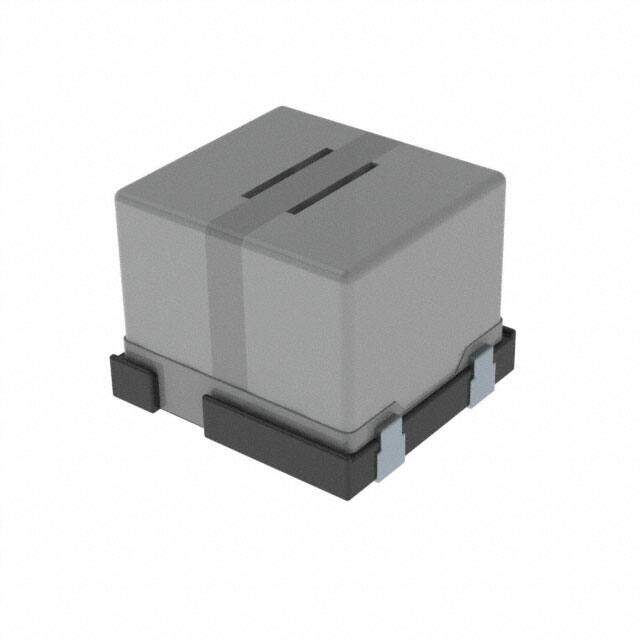

1155EA-0001=P3 image
Favorite
1155EA-0001=P3 image
Favorite

1155EA-0001=P3

Murata Electronics
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description Nonstandard 0.563Lx0.524W 14.30mmx13.30mm 10muH ±20%
PDF
/
Buying Options
Total Price: USD $4.03
Unit Price: USD $4.028
≥1 USD $4.028
≥10 USD $3.30505
≥100 USD $3.2015
≥500 USD $3.09795
≥1000 USD $2.99535
Inventory: 42003
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Size / Dimension 0.563Lx0.524W 14.30mmx13.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 3A
Shielding YES
Number of Functions 1
Inductance 10μH
Test Frequency 0.1MHz
DC Resistance (DCR) 25mOhm Max
Terminal Placement DUAL IN-LINE
Inductance Frequency - Test 100MHz
Current - Saturation 7.2A
Rated Current-Max 3A

Dimensions

Height Seated (Max) 0.413 10.50mm

Compliance

RoHS Status Non-RoHS Compliant
Ratings AEC-Q200
