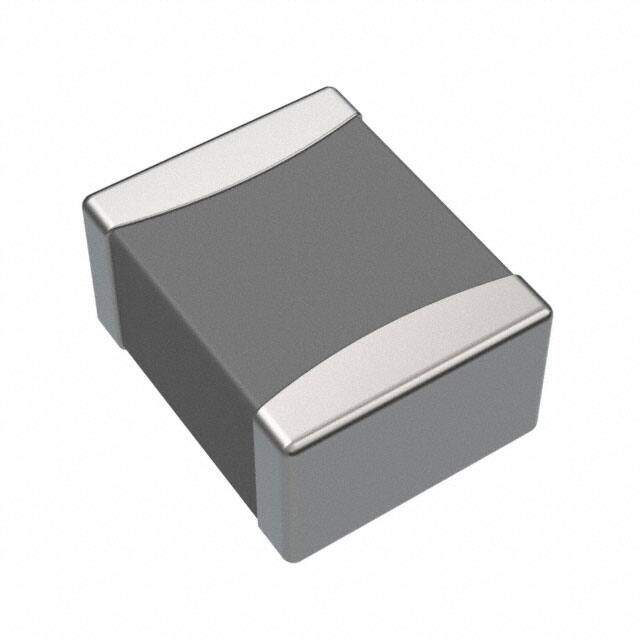

LPWI201608N1R5T
RoHS
RoHS compliant
RoHS compliantPackage 0806 (2016 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LPWI 0806 (2016Metric) 0.079Lx0.063W 2.00mmx1.60mm 1.5muH
PDF
/
Inventory: 1752
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Material - Core Metal Composite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series LPWI
Size / Dimension 0.079Lx0.063W 2.00mmx1.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Thin Film
Current Rating (Amps) 1.9A
Shielding Shielded
Inductance 1.5μH
DC Resistance (DCR) 120mOhm Max
Inductance Frequency - Test 1MHz
Current - Saturation 2.3A
Dimensions
Height Seated (Max) 0.031 0.80mm
Compliance
RoHS Status ROHS3 Compliant
