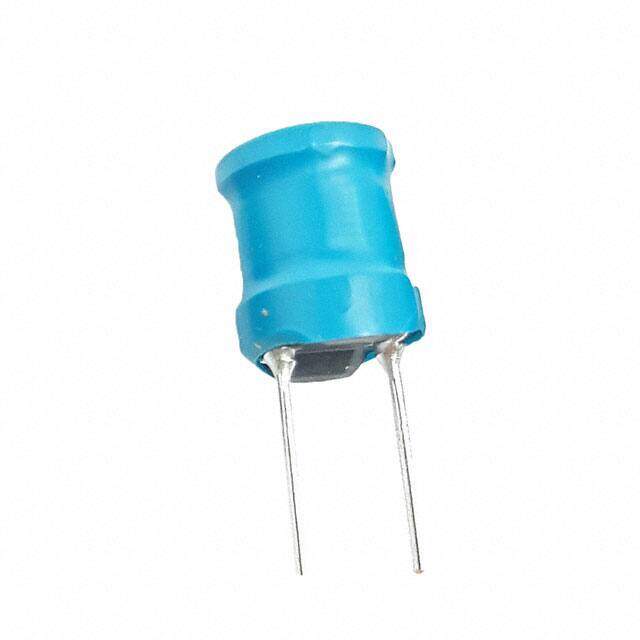

SBCP-87HY100H
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SBCP Radial Vertical Cylinder 0.374Dia 9.50mm 10muH
PDF
/
Buying Options
Total Price: USD $1.74
Unit Price: USD $1.736632
≥1 USD $1.736632
≥10 USD $1.638331
≥100 USD $1.545592
≥500 USD $1.458111
≥1000 USD $1.37557
Inventory: 5064
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.335 8.50mm
Technical
Current - Saturation 2.4A
Inductance Frequency - Test 10kHz
DC Resistance (DCR) 50mOhm Max
Inductance 10μH
Shielding Unshielded
Current Rating (Amps) 2.3A
Type Wirewound
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Tolerance ±20%
Size / Dimension 0.374Dia 9.50mm
Series SBCP
Packaging Tape & Reel (TR)
Operating Temperature -20°C~105°C
Physical
Material - Core Ferrite
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Supply Chain
Factory Lead Time 29 Weeks
Alternative Model
