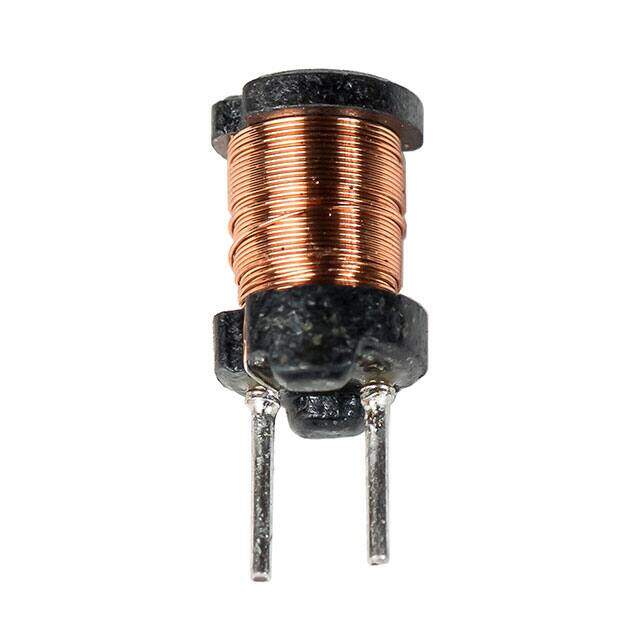

SBCP-47HY331B
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 330UH 270MA 1.8 OHM TH
PDF
/
Buying Options
Total Price: USD $0.58
Unit Price: USD $0.5808
≥1 USD $0.5808
≥10 USD $0.49456
≥100 USD $0.449856
≥500 USD $0.422928
≥1000 USD $0.350856
≥3000 USD $0.323902
Inventory: 1099
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 29 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Material - Core Ferrite
Technical
Operating Temperature -20°C~105°C
Packaging Bulk
Published 2016
Series SBCP
Size / Dimension 0.197Dia 5.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Wirewound
Shielding Unshielded
Construction Cylindrical
Current Rating 270mA
Lead Length 3.5mm
Lead Spacing 2.5mm
Lead Diameter 0.5 mm
Inductance 330μH
Test Frequency 10kHz
DC Resistance (DCR) 1.8Ohm Max
Rated Current-Max 0.27A
Inductance Tolerance 10%
Dimensions
Height Seated (Max) 0.295 7.50mm
Compliance
RoHS Status ROHS3 Compliant
