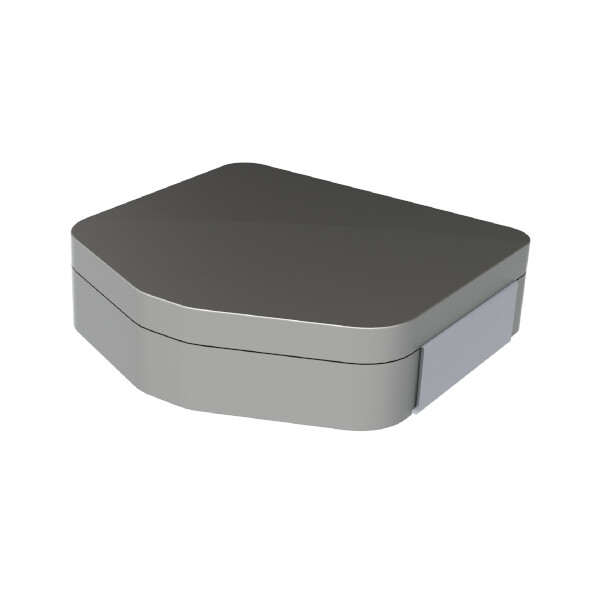

MPXV1D2213L101
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
-55/+155°C
PDF
/
Buying Options
Total Price: USD $15.95
Unit Price: USD $15.94564
≥1 USD $15.94564
≥10 USD $15.043057
≥100 USD $14.191567
≥500 USD $13.388261
≥1000 USD $12.630435
Inventory: 1097
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 27 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Metal Composite
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series MPXV
Size / Dimension 0.886Lx0.866W 22.50mmx22.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 10A
Shielding Shielded
Inductance 100μH
DC Resistance (DCR) 47.4mOhm Max
Frequency - Self Resonant 1.6MHz
Inductance Frequency - Test 100kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 10.5A
Dimensions
Height Seated (Max) 0.512 13.00mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
