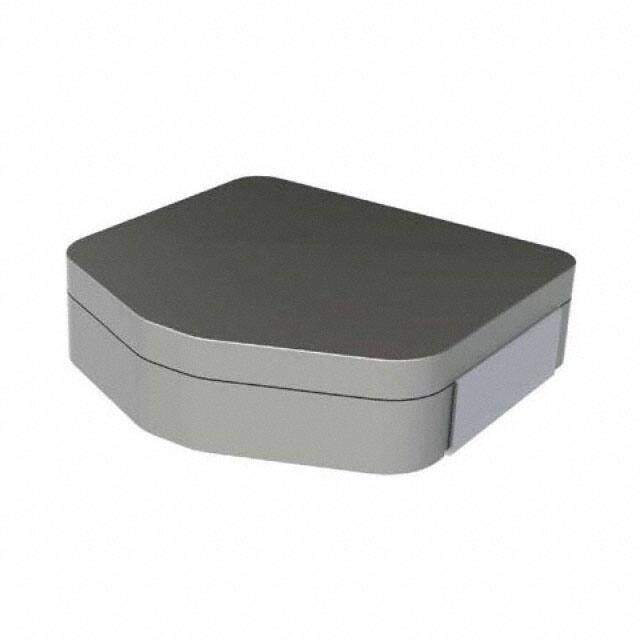

MPX1D2213L101
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
INDUCTOR METAL 100 UH, 11A, 35.6
PDF
/
Buying Options
Total Price: USD $9.7
Unit Price: USD $9.6976
≥1 USD $9.6976
≥10 USD $8.65216
≥100 USD $8.128032
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 27 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Metal Composite
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series METCOM MPX
Size / Dimension 0.886Lx0.866W 22.50mmx22.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 11A
Shielding Shielded
Inductance 100μH
DC Resistance (DCR) 35.6mOhm Max
Inductance Frequency - Test 100kHz
Dimensions
Height Seated (Max) 0.512 13.00mm
Compliance
RoHS Status ROHS3 Compliant
