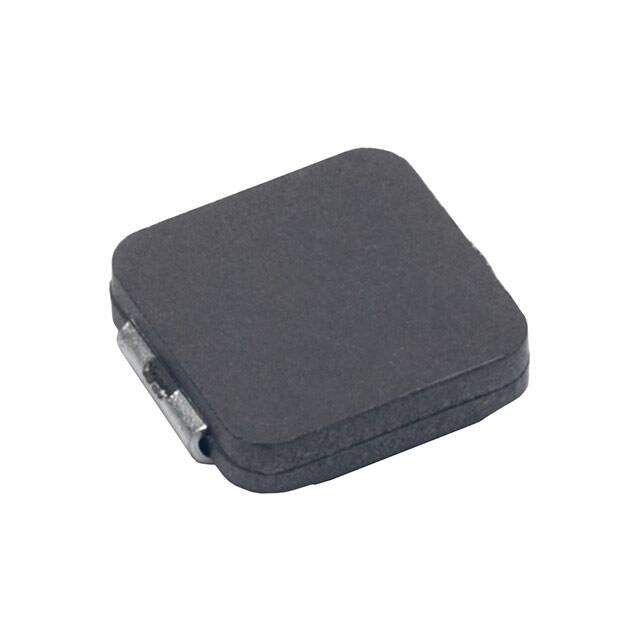

MPX1D1250L2R2
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
METCOM MPX Nonstandard 0.520Lx0.492W 13.20mmx12.50mm 2.2muH
PDF
/
Buying Options
Total Price: USD $2.07
Unit Price: USD $2.068
≥1 USD $2.068
≥10 USD $1.75648
≥100 USD $1.618848
≥500 USD $1.44672
≥1000 USD $1.2056
Inventory: 536
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 27 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Metal Composite
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series METCOM MPX
Size / Dimension 0.520Lx0.492W 13.20mmx12.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 21A
Shielding Shielded
Inductance 2.2μH
DC Resistance (DCR) 4.8mOhm Max
Frequency - Self Resonant 21MHz
Inductance Frequency - Test 100kHz
Current - Saturation 28.5A
Dimensions
Height Seated (Max) 0.197 5.00mm
Compliance
RoHS Status ROHS3 Compliant
