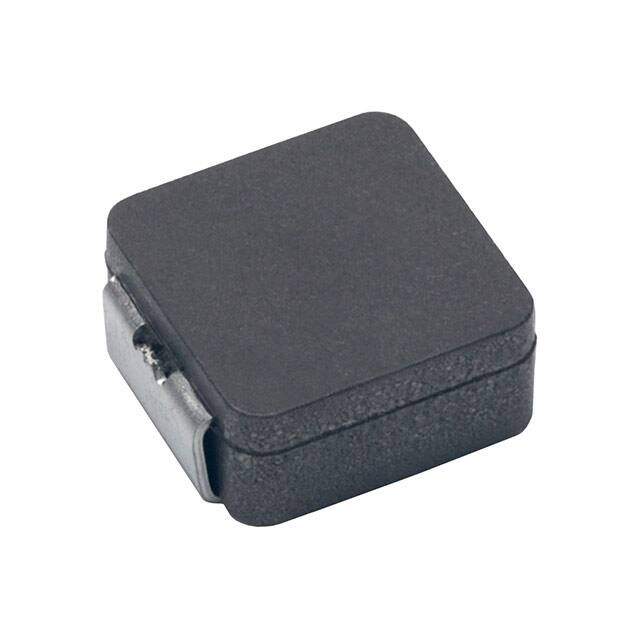

MPX1D0840L2R2
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
METCOM MPX Nonstandard 0.341Lx0.315W 8.65mmx8.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.8536
≥1 USD $0.8536
≥10 USD $0.72424
≥100 USD $0.65824
≥500 USD $0.61864
≥1000 USD $0.513304
≥3000 USD $0.473827
Inventory: 1137
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.157 4.00mm
Technical
Current - Saturation 17A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 8.7mOhm Max
Inductance 2.2μH
Shielding Shielded
Current Rating (Amps) 14.3A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.341Lx0.315W 8.65mmx8.00mm
Series METCOM MPX
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Material - Core Metal Composite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 27 Weeks
