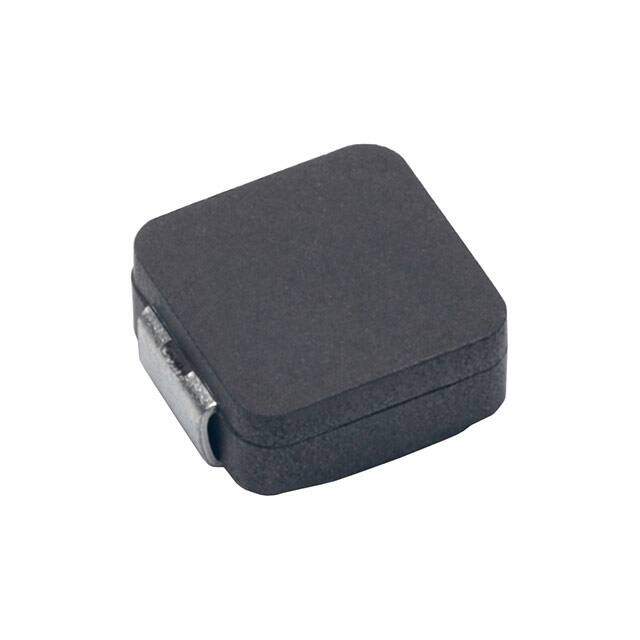

MPX1D0630L150
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
METCOM MPX Nonstandard 0.276Lx0.256W 7.00mmx6.50mm 15muH
PDF
/
Buying Options
Total Price: USD $1.01
Unit Price: USD $1.012
≥1 USD $1.012
≥10 USD $0.85536
≥100 USD $0.777568
≥500 USD $0.731104
≥1000 USD $0.606584
≥3000 USD $0.559962
Inventory: 1094
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 27 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Metal Composite
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series METCOM MPX
Size / Dimension 0.276Lx0.256W 7.00mmx6.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 3.3A
Shielding Shielded
Inductance 15μH
DC Resistance (DCR) 130.2mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 4A
Dimensions
Height Seated (Max) 0.118 3.00mm
Compliance
RoHS Status ROHS3 Compliant
