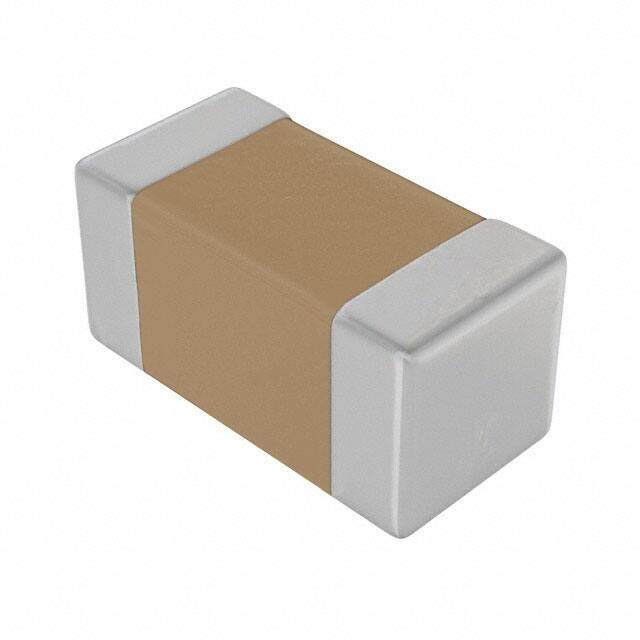

L0402C68NJRMST
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
L-RMS 0402 (1005Metric) 0.039Lx0.023W 1.00mmx0.58mm 68nH
PDF
/
Buying Options
Total Price: USD $0.09
Unit Price: USD $0.088
≥1 USD $0.088
≥10 USD $0.02376
Inventory: 1145
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.018 0.45mm
Height 500μm
Technical
DC Current 180mA
Inductance Tolerance 5%
Q Factor 8
Quality Factor-Min (at L-nom) 8
Q @ Freq 11 @ 100MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 1.2GHz
Max DC Current 180mA
DC Resistance (DCR) 1.2Ohm Max
Test Frequency 100MHz
Inductance 68nH
Case Code (Imperial) 0402
Case Code (Metric) 1005
Military Standard Not
Current Rating 180mA
Depth 550μm
Number of Functions 1
Shielding Unshielded
Packing Method TR
Terminal Finish Matte Tin (Sn)
Type Multilayer
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.039Lx0.023W 1.00mmx0.58mm
Series L-RMS
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ceramic
Terminal Shape WRAPAROUND
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 23 Weeks
