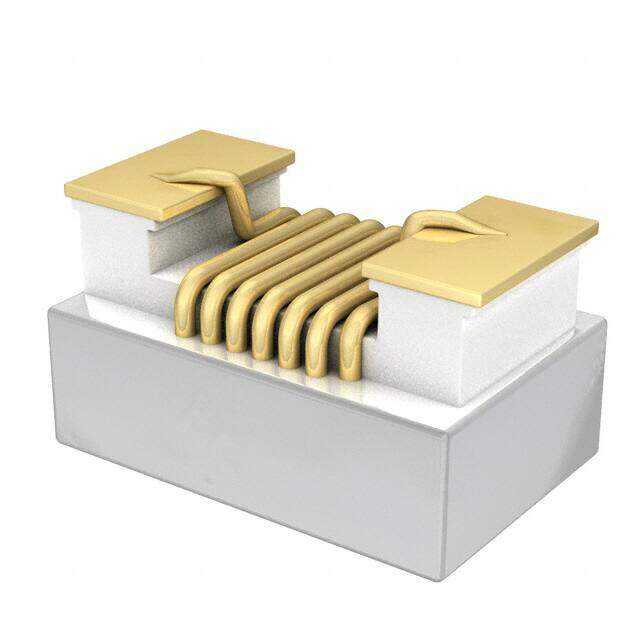

L-07W23NKV4T
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
0402 (1005Metric) 0.039Lx0.020W 1.00mmx0.50mm 23nH ±10%
PDF
/
Inventory: 8209
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 550μm
Length 990.6μm
Height Seated (Max) 0.024 0.60mm
Height 500μm
Technical
DC Current 400mA
Q Factor 55
Inductance Frequency - Test 250MHz
Q @ Freq 55 @ 900MHz
Frequency - Self Resonant 2.7GHz
Max DC Current 400mA
DC Resistance (DCR) 214mOhm Max
Test Frequency 250MHz
Inductance 23nH
Case Code (Imperial) 0402
Case Code (Metric) 1005
Military Standard Not
Current Rating 400mA
Depth 650μm
Shielding Unshielded
Current Rating (Amps) 400mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.039Lx0.020W 1.00mmx0.50mm
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ceramic
Supplier Device Package 0402 (1005 Metric)
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 31 Weeks
