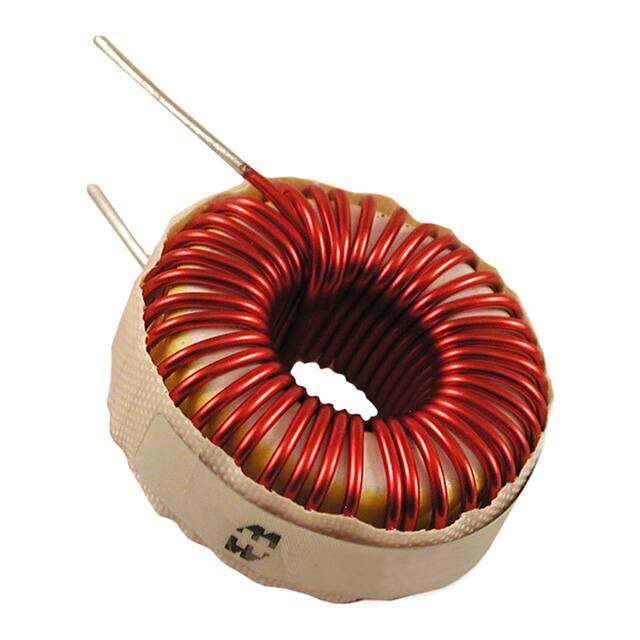

1540M17
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
1540 Radial Vertical (Open) 1.812Diax0.750W 46.02mmx19.05mm 500muH
PDF
/
Buying Options
Total Price: USD $10.74
Unit Price: USD $10.736
≥1 USD $10.736
≥10 USD $10.19568
≥100 USD $9.515968
Inventory: 71
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Terminal Shape PRINTED WIRING PIN
Weight 199.999989g
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Packaging Bulk
Published 2000
Series 1540
Size / Dimension 1.812Diax0.750W 46.02mmx19.05mm
Tolerance ±15%
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Type Toroidal
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Current Rating 4A
Lead Length 12.7mm
Inductance 500μH
DC Resistance (DCR) 150mOhm Max
Max DC Current 4A
Inductor Application HIGH CURRENT INDUCTOR
Dimensions
Diameter 46mm
Compliance
RoHS Status ROHS3 Compliant
