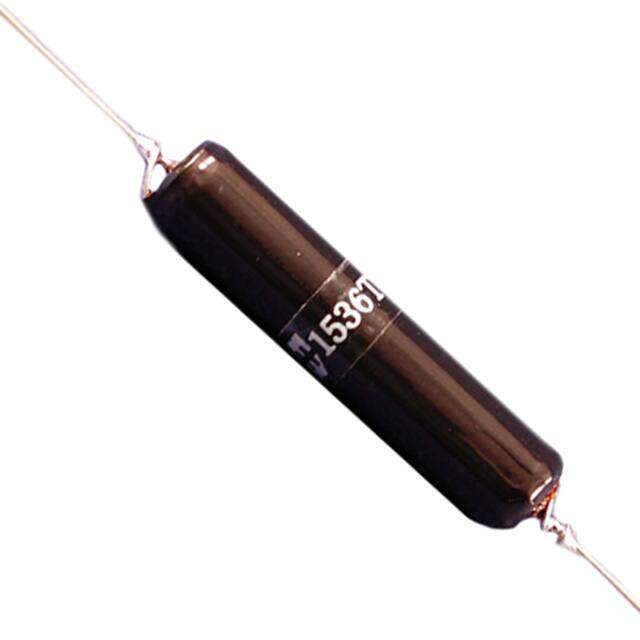

1536TA
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
1536 Axial 0.800Diax1.100L 20.32mmx27.94mm 100muH
PDF
/
Buying Options
Total Price: USD $31.94
Unit Price: USD $31.942857
≥1 USD $31.942857
≥200 USD $12.745633
≥500 USD $12.320254
≥1000 USD $12.11019
Inventory: 6765
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Terminal Shape PRINTED WIRING PIN
Material - Core Iron Powder
Shape/Size Description TUBULAR PACKAGE
Technical
Packaging Bulk
Published 2000
Series 1536
Size / Dimension 0.800Diax1.100L 20.32mmx27.94mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 2
Reach Compliance Code unknown
Current Rating 1A
Lead Length 31.8mm
Inductance 100μH
Test Frequency 1kHz
DC Resistance (DCR) 550mOhm
Max DC Current 1mA
Inductor Application HIGH CURRENT INDUCTOR
Dimensions
Diameter 20.3mm
Compliance
RoHS Status Non-RoHS Compliant
