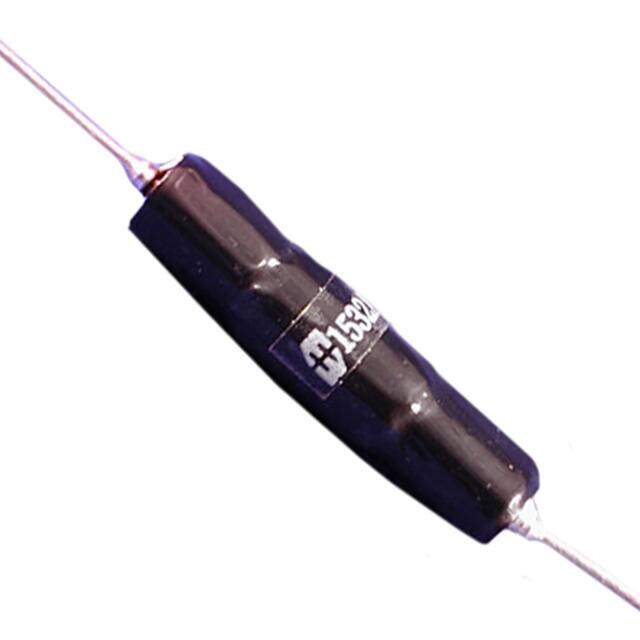

1535G
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
1535 Axial 0.531Diax0.875L 13.49mmx22.22mm 10mH
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Weight 22.679845g
Core Material Ferrite
Technical
Packaging Bulk
Series 1535
Size / Dimension 0.531Diax0.875L 13.49mmx22.22mm
Tolerance ±5%
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Unshielded
Current Rating 100mA
Lead Length 38.1mm
Inductance 10mH
Test Frequency 79kHz
DC Resistance (DCR) 31Ohm Max
Max DC Current 100mA
Frequency - Self Resonant 710kHz
Q @ Freq 108 @ 79kHz
Q Factor 108
Dimensions
Diameter 13.4874mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
