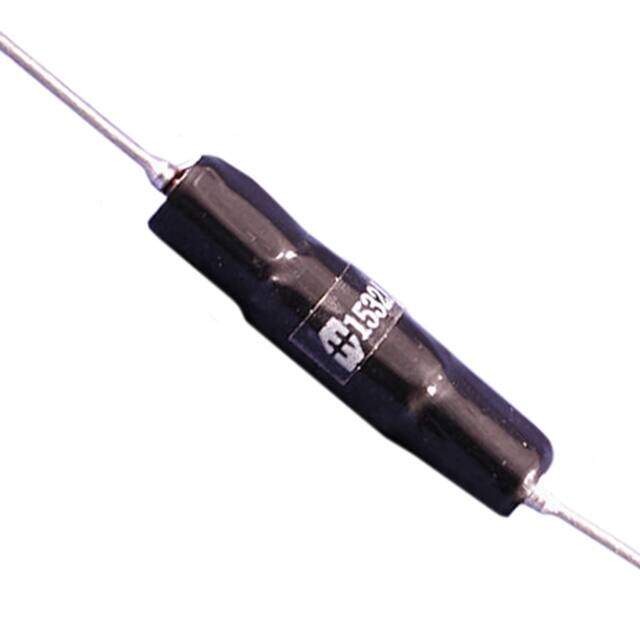

1533H
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
1533 Axial 0.563Diax0.750L 14.30mmx19.05mm 1mH
PDF
/
Inventory: 6941
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Diameter 14.3mm
Technical
Q Factor 59
Quality Factor-Min (at L-nom) 59
Q @ Freq 59 @ 250kHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 3.7MHz
Max DC Current 160mA
DC Resistance (DCR) 19Ohm Max
Test Frequency 250kHz
Inductance 1mH
Lead Length 38.1mm
Current Rating 160mA
Construction Single or Pi
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Tolerance ±5%
Size / Dimension 0.563Diax0.750L 14.30mmx19.05mm
Series 1533
Packaging Bulk
Physical
Core Material PHENOLIC
Shape/Size Description TUBULAR PACKAGE
Weight 49.999997g
Terminal Shape PRINTED WIRING PIN
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
