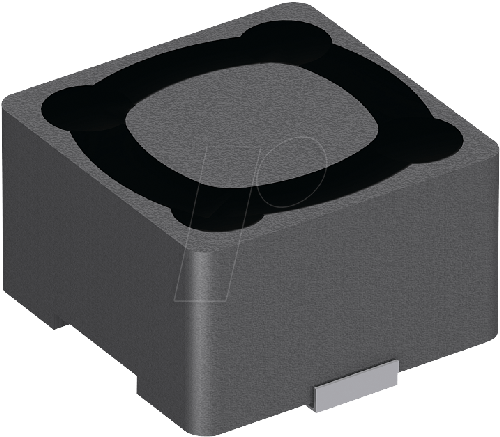

PIS2816-100M-04
RoHS
/
Package SMD/SMT
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR RoHS Compliant Steel WRAPAROUND Fixed Inductor 125C 1kHz 52MOhm 10muH
PDF
/
Inventory: 9153
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case SMD/SMT
Surface Mount YES
Terminal Shape WRAPAROUND
Material Steel
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Tolerance 20%
JESD-609 Code e3
Number of Terminations 2
Resistance 49MOhm
Terminal Finish Tin (Sn)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Shielding Shielded
Number of Functions 1
Depth 7.5mm
Current Rating 1.84A
Military Standard Not
Inductance 10 μH
Test Frequency 1kHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
DC Resistance (DCR) - Parallel 52MOhm
Inductance-Nom (L) 10 μH
DC Current 1.84A
Dimensions
Height 4.7mm
Length 7.5mm
Width 7.5mm
Compliance
RoHS Status RoHS Compliant
Alternative Model
