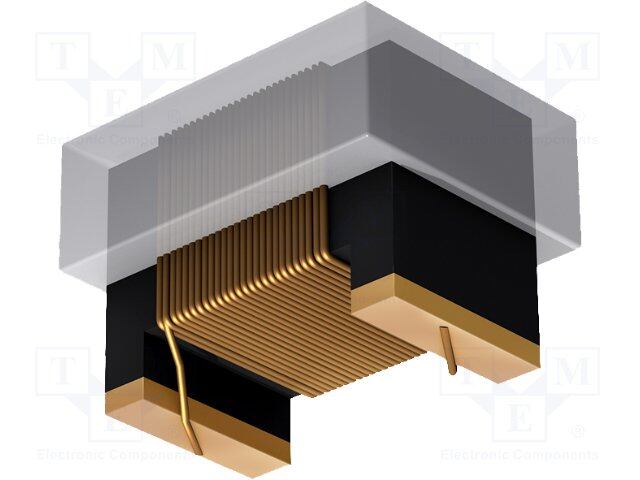

1812AFTC-292K-01
RoHS
/
Package /
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR RoHS Compliant ONE SURFACE DUAL ENDED fixed air core inductor 125C 620kHz 80Ohm 2.89mH
PDF
/
Inventory: 7972
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Surface Mount YES
Terminal Shape ONE SURFACE
Material - Core Ceramic, Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Tolerance 10%
Number of Terminations 2
Termination SMD/SMT
Resistance 80Ohm
Terminal Finish Gold Flash (Au)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Shielding Unshielded
Number of Functions 1
Inductance 2.89 mH
Test Frequency 0.125MHz
Frequency - Self Resonant 620kHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Q Factor 19
DC Resistance (DCR) - Parallel 80Ohm
Inductance-Nom (L) 2890 μH
Dimensions
Height 3.65mm
Length 4.9mm
Width 3.8mm
Compliance
RoHS Status RoHS Compliant
