B82471A1103M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR RoHS Compliant WRAPAROUND DUAL ENDED Fixed Inductor 150C 100kHz 100mOhm 10muH
PDF
/
Inventory: 7936
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 5.6mm
Length 6.096mm
Height Seated (Max) 4.9022mm
Height 4.9mm
Technical
DC Current 1.44A
Inductance-Nom (L) 10 μH
DC Resistance (DCR) - Parallel 100mOhm
Case/Size Code 2422
Current - Saturation 1.8A
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 1.44A
Test Frequency 100kHz
Inductance 10 μH
Operating Temperature (Min) -55°C
Operating Temperature (Max) 150°C
Military Standard Not
Current Rating 1.44A
Construction Rectangular
Depth 6mm
Number of Functions 1
Shielding Unshielded
Packing Method TR, Blister, 13 Inch
HTS Code 8504.50.80.00
Composition Wirewound
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Pbfree Code yes
JESD-609 Code e3
Tolerance 20%
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Weight 1.000001g
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mount Surface Mount

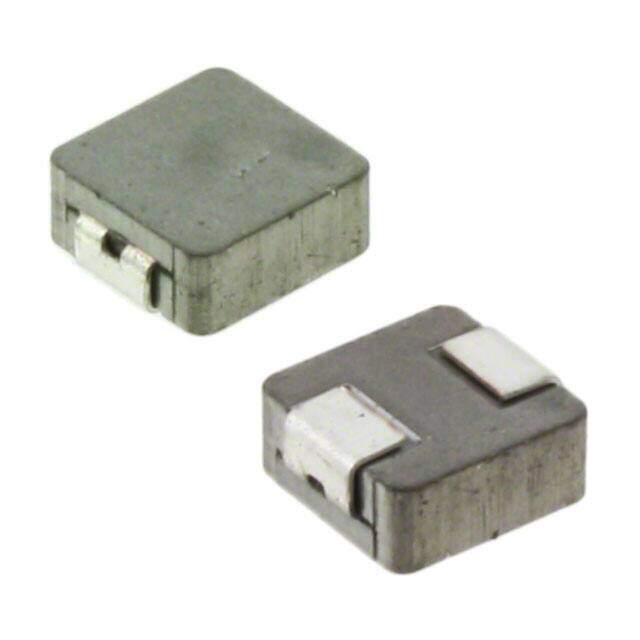

Alternative Model
