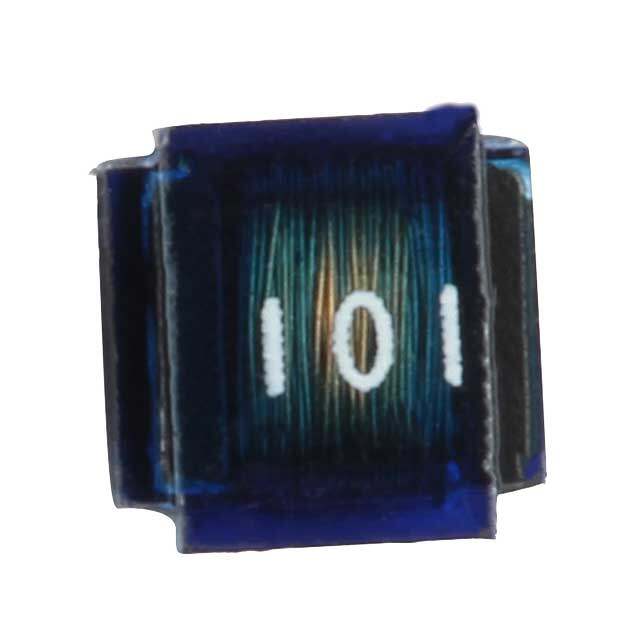

WCL2520-220-R
RoHS
/
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 22UH 105MA 3.9 OHM SMD
PDF
/
Buying Options
Total Price: USD $0.14
Unit Price: USD $0.1408
≥1 USD $0.1408
≥10 USD $0.11176
≥100 USD $0.103136
≥500 USD $0.094512
≥1000 USD $0.083336
≥3000 USD $0.080749
Inventory: 1997
Minimum: 1
-
+
Technical Details
Dimensions
Height Seated (Max) 0.083 2.10mm
Technical
Inductance Frequency - Test 2.52MHz
Q @ Freq 10 @ 2.52MHz
Frequency - Self Resonant 18MHz
DC Resistance (DCR) 3.9Ohm Max
Inductance 22μH
Shielding Unshielded
Current Rating (Amps) 105mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 0.115Lx0.110W 2.92mmx2.79mm
Series WCL2520
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Material - Core Ceramic
Supplier Device Package 1008
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
Alternative Model
