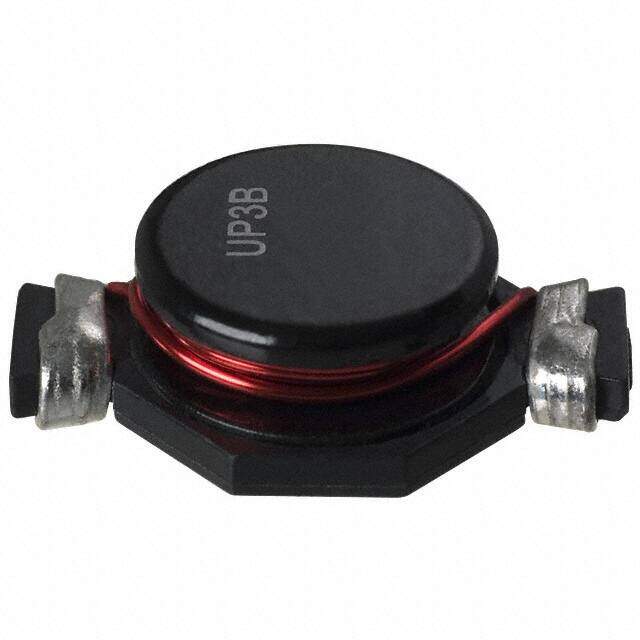

UP3B-150
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 15UH 3.9A 31.7 MOHM
PDF
/
Inventory: 7792
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 0.268 6.80mm
Technical
Current - Saturation 4.3A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 31.7mOhm Max
Inductance 15μH
Shielding Unshielded
Current Rating (Amps) 3.9A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.760Lx0.520W 19.30mmx13.21mm
Series UNI-PAC?
Published 2002
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
