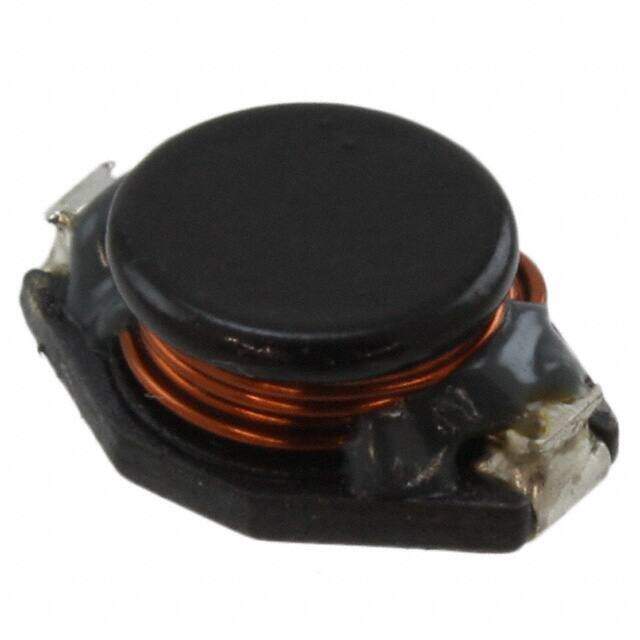

UP2UC-681-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
UNI-PAC? 2UC Nonstandard 0.500Lx0.394W 12.70mmx10.00mm 680muH
PDF
/
Inventory: 4958
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 453.59237mg
Core Material Ferrite
Technical
Operating Temperature -25°C~85°C
Packaging Tape & Reel (TR)
Published 2012
Series UNI-PAC? 2UC
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Composition Wirewound
Current Rating (Amps) 400mA
Shielding Unshielded
Depth 9.5mm
Current Rating 400mA
Inductance 680μH
Test Frequency 100kHz
DC Resistance (DCR) 2.02Ohm Max
Max DC Current 400mA
Frequency - Self Resonant 2.5MHz
Inductance Frequency - Test 100kHz
Current - Saturation 400mA
Dimensions
Height 5.207mm
Height Seated (Max) 0.205 5.21mm
Length 12.7mm
Width 10.0076mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
