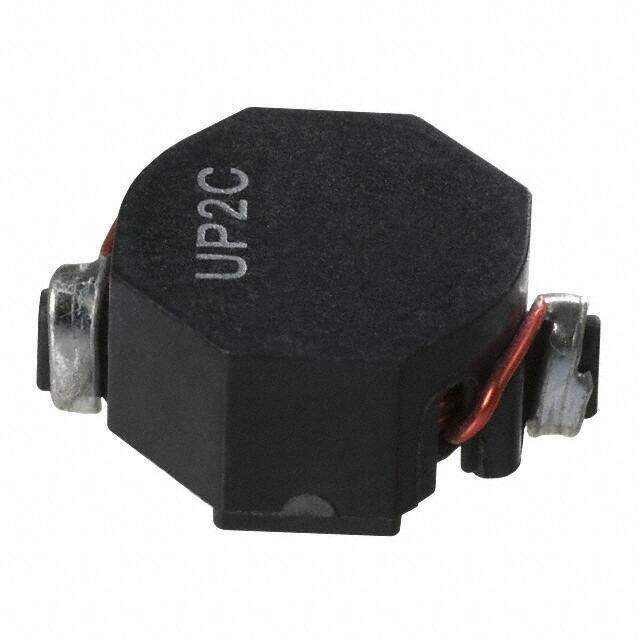

UP2C-330-R
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
UNI-PAC? 2C Nonstandard 0.508Lx0.370W 12.90mmx9.40mm 33muH
PDF
/
Buying Options
Total Price: USD $10.17
Unit Price: USD $10.1745
≥1 USD $10.1745
≥10 USD $8.3486
≥100 USD $8.08735
≥500 USD $7.82705
≥1000 USD $7.5658
Inventory: 3210
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 1.814369g
Material - Core Ferrite
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2007
Series UNI-PAC? 2C
Size / Dimension 0.508Lx0.370W 12.90mmx9.40mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2.16A
Shielding Unshielded
Depth 9.4mm
Current Rating 2.16A
Military Standard Not
Inductance 33μH
Test Frequency 100kHz
DC Resistance (DCR) 79.7mOhm
Max DC Current 2.16A
Inductance Frequency - Test 100kHz
Current - Saturation 2.2A
DC Current 2.16A
Dimensions
Height 5.2mm
Height Seated (Max) 0.205 5.20mm
Length 12.9mm
Width 9.398mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
