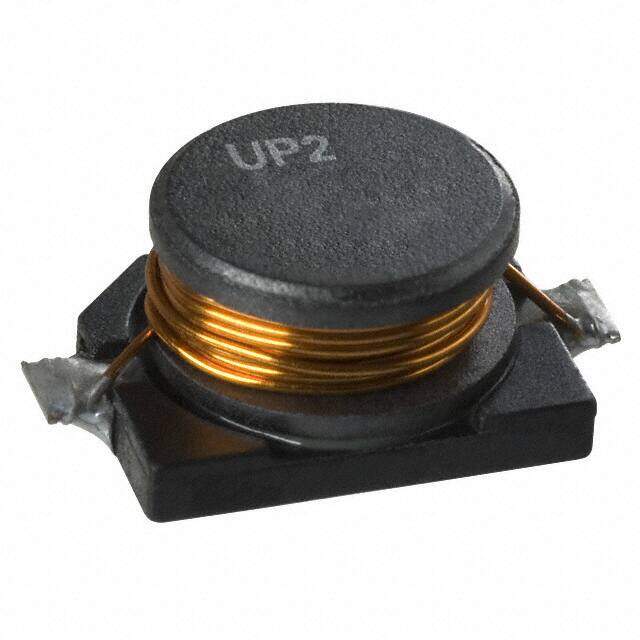

UP2-331-R image
Favorite
UP2-331-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description UNI-PAC? 2 Nonstandard 0.541Lx0.345W 13.74mmx8.76mm 330muH
PDF
/
Buying Options
Total Price: USD $2.6
Unit Price: USD $2.596
≥1 USD $2.596
≥10 USD $2.20704
≥100 USD $2.034208
≥500 USD $1.817904
≥1000 USD $1.514832
≥3000 USD $1.471571
Inventory: 1148
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 8.763mm
Length 13.74mm
Height Seated (Max) 0.231 5.86mm
Height 5.8674mm

Technical

DC Current 760mA
Current - Saturation 510mA
Inductance Frequency - Test 100kHz
Max DC Current 760mA
DC Resistance (DCR) 977.5mOhm Max
Test Frequency 100kHz
Inductance 330μH
Military Standard Not
Current Rating 760mA
Depth 8.76mm
Shielding Unshielded
Current Rating (Amps) 760mA
Composition Wirewound
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.541Lx0.345W 13.74mmx8.76mm
Series UNI-PAC? 2
Packaging Tape & Reel (TR)

Physical

Weight 1.360777g
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 14 Weeks
