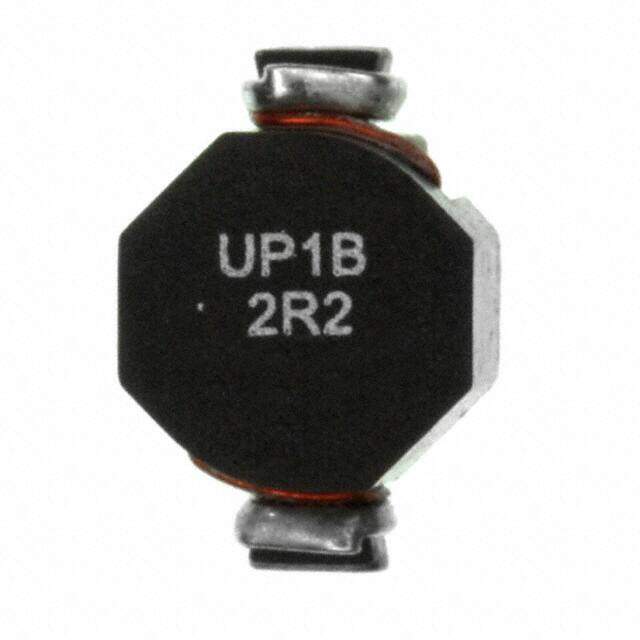

UP1B-2R2-R image
Favorite
UP1B-2R2-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description UNI-PAC? Nonstandard 0.350Lx0.240W 8.89mmx6.10mm 2.2muH
PDF
/
Buying Options
Total Price: USD $1.44
Unit Price: USD $1.4432
≥1 USD $1.4432
≥10 USD $1.2232
≥100 USD $1.11232
≥500 USD $1.045616
≥1000 USD $0.867592
≥3000 USD $0.800835
Inventory: 1152
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 6.096mm
Length 8.89mm
Height Seated (Max) 0.197 5.00mm
Height 5mm

Technical

RMS Current (Irms) 3.1A
DC Current 3.1A
Inductance Tolerance 20%
Current - Saturation 3.5A
Inductance Frequency - Test 100kHz
Max DC Current 3.1A
DC Resistance (DCR) 36.3mOhm Max
Test Frequency 100kHz
Inductance 2.2μH
Military Standard Not
Current Rating 3.1A
Depth 6.1mm
Shielding Unshielded
Current Rating (Amps) 3.1A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.350Lx0.240W 8.89mmx6.10mm
Series UNI-PAC?
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Material - Core Ferrite
Weight 907.18474mg
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 14 Weeks
